Max 1100℃ 에어히터 개발완료

페이지 정보

작성자 최고관리자 작성일17-08-16 16:00 조회1,240회 댓글1건

본문

소형 규격의 초고온 Max1100℃를 자랑하는 Air-Z Heater의 개발이 완료 되었습니다.

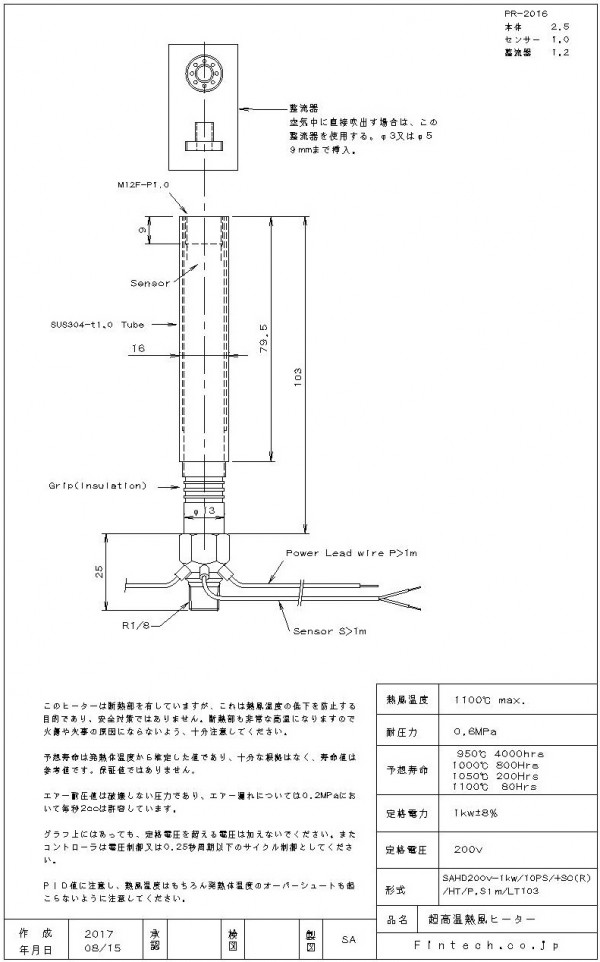

1. 규격명
  SAHD200V-1KW/10PS/HT (220V 제작 가능)

2. 주요용도
  다양한 예열, 열처리, 브레이징, 용접, 절단, 증발, 건조 등으로 매우 저렴 한 비용으로 처리할 수 있습니다.
  전기, 기계, 자동차,  모바일, 반도체 산업을 비롯해 각종 자동화기기, 공장, 실험실, 연구실 등에서 사용하실 수 있습니다.

3. SAHD 규격의 성능 향상
  기존 SAHD 규격의 Air-Z Heater와 비교하여 약100℃ 이상 높은 1000℃~1100℃의 열풍을 가능하게 개발되었습니다.
  은브레이징의 작업도 여유있게 합니다.
  이는 HD코일의 추가 연구의 결과 태어났습니다.
  (참조 : http://www.nisi.co.kr/bbs/board.php?bo_table=3010&wr_id=6)

4. 대략적인 사양
  - 전력 : 200V(220V)-1KW
  - 공기압력 : 0.6MPa(P-Type)
  - 토출가능 온도 : 상온~Max1100℃
  - 사용유량 : 10~50L/min

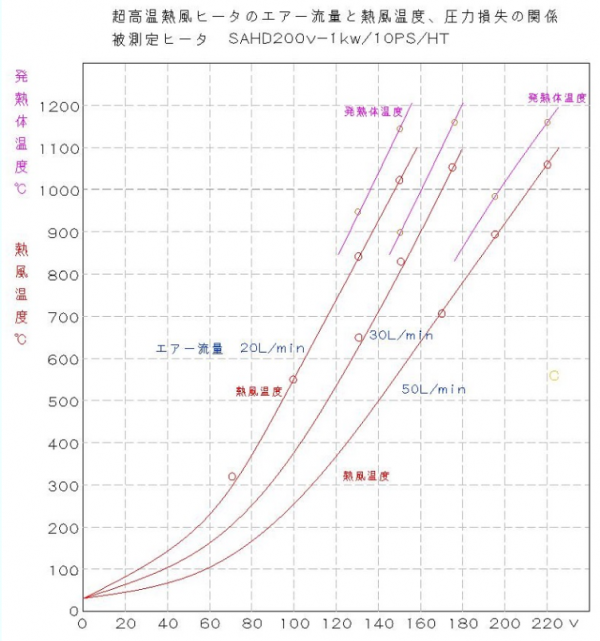

5. 압력 손실에 관한 사항
  SAHD-10 □ S/HT 형Air-Z Heater는 상대적으로 압력 손실의 큰 Air-Z Heater 입니다.
  50L/min에서 사용 하시는 경우 약 0.25 MPa의 압력 손실을 감수 해야 합니다.
  따라서 일반적으로 공기 압축기를 사용 합니다.

  많은 관심을 부탁드립니다.
